 KSD9700 90C Thermostat Temperature Switch 250V 5A
KSD9700 90C Thermostat Temperature  Switch 250V 5A
MPN :
SKU : KSD9700A5C90-A8F4B
Stock : 154pcs
Price:PKR 80.00
Click on the following link for product video demo presentation. https://youtu.be/9eZnvF-pyyE

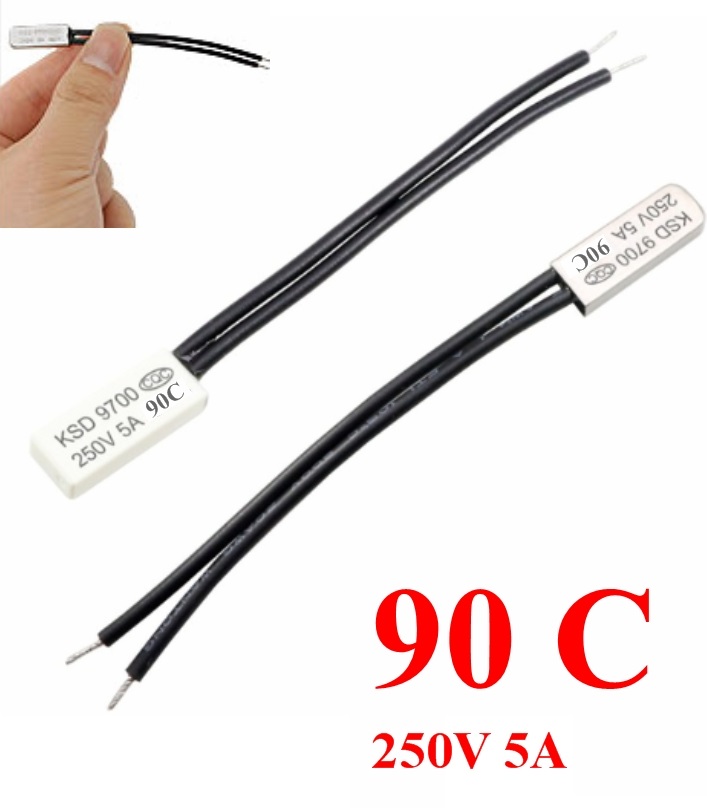

KSD9700 90C Thermostat Temperature Control Switch 250V 5A NC

KSD9700 product is a kind of thermostat which adopt the bimetal head as the temperature sensing element. The bimetal head is in free state and the contacts are open when the electrical appliance is working in normal condition.
Widly used in home appliance motor and electrical equipment, such as air conditioner motor, transformer, thermal appliances, etc.


Contact: NC (Normal Open); Rating: 250V 5A; Cable Length: 7cm/2.7"
Head Dimension: 20 x 8 x 4mm/0.78" x 0.31" x 0.16"(L*W*T); Max Rated Disconnection Temperature: 90 C; Product Name: Temperature Control Switch
Country of Manufacture: CHINA; Material: Plastic, Bimetal; Net Weight: 6g
Package Content: 1 x Temperature Control Switch; Brand: Assisi
Model: KSD9700; Main Color: Black, White
